Description
HBEP

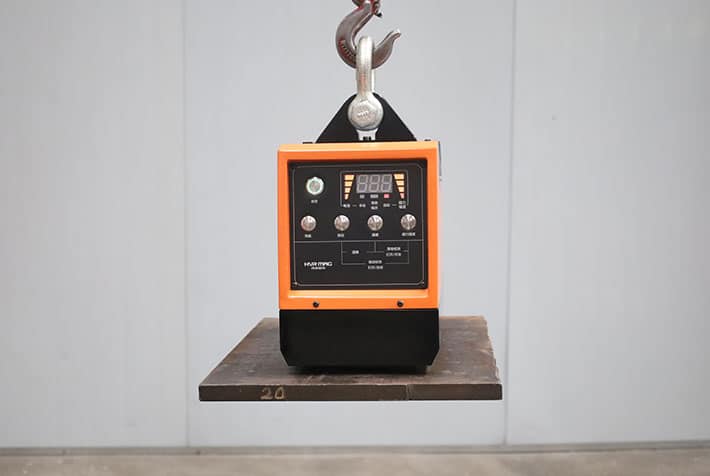

Electro permanent lifting Magnet with Battery Supply
LIFTING FLAT AND CILINDRICAL PARTS
MAXIMUM SAFETY
The magnet is switched on by a short current pulse.
The effective force is generated by permanent magnets.
The safety factor 3:1 guarantees safe operation even with rough and contaminated workpieces.
LOW ENERGY CONSUMPTION
95% less energy consumption than traditional electromagnets.
A short current pulse is sufficient to activate/deactivate the magnet.
With a fully charged battery > 1,000 cycles can be performed.
ERGONOMIC
An electric power cable is not required.
Simple operation via push buttons on the control panel, or automatic switching via the built-in proximity switch.
FEATURES
Safety factor 3:1
6 models from 500 kg to 5000 kg
Lithium battery technology with high autonomy
Manual or automatic operation
4 levels of PICK-UP force for lifting 1 single steel plate from a stack.
Proximity switch against unintentional demagnetisation in the air
