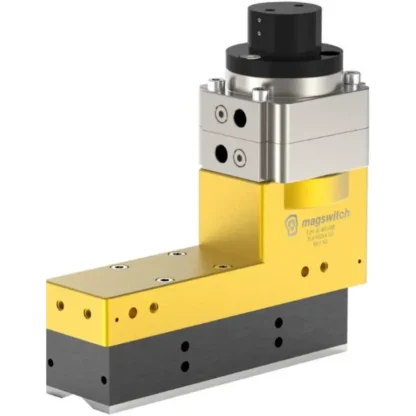

PLAY50x4 2.0

Description

Magswitch 50×4 2.0 LAY series utilizes field interaction between individual magnets to increase the depth of field and spread the attractive force over a larger footprint. This allows for greater working loads and increased control over larger work pieces. With customizable pole shoes to fit almost any application, the LAY is a great all around tool that is perfect for picking pipe and round as well as large plate steel.

Magswitch PLAY50x4 2.0 delivers the power of multiple magnets together with a single point of actuation. This tool is built for handling long pipes or beams as well as heavyweight applications.

Contact our engineers to customize the design and fabricate custom pole shoes for your application.

FEATURES & BENEFITS
Deep field technology
Customizable Contact Surface
Best for handling long components
Saves energy
Fail-safe operation

Accessories available on request

Material Thickness – MM (in) 1.5 (0.06) 1.9 (0.07) 2.70 (0.11) 3.00 (0.12) 3.50 (0.14) 4.76 (0.19) 6.35 (0.25) 9.53 (0.37) 12.70 (0.5) 19.05 (0.75)
Max Force – N 1031 1459 2113 2476 3011 4241 5818 7897 9154 9750
Required Air Pressure – bar (PSI) 3.45 (50.00) 3.10 (45.00) 2.76 (40.00) 2.76 (40.00) 2.41 (35.00) 2.07 (30.00) 2.07 (30.00) 2.07 (30.00) 2.07 (30.00) 1.93 (28.00)
Categories: , , Tags: , , , , , , , , , , , , , , , , , , , ,



Max Breakaway Force 9750 N
Max Shear Force 2334 N
Min Thickness for de-stack 0.37 in / 9.50 mm
Max Allowable Pressure 145.04 psi / 10 bar
Off Target Actuation Pressure 75 psi / 5.17 bar
Net Weight 24.91 lb / 11.3 kg
Air Port Threads Rc 1/4
Mounting Options M8x1.25
Magnetic Pole Footprint 2.76 x 9.41 in / 71 x 239 mm

* Max Breakaway determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches. Many factors contribute to the actual breakaway force in each application. Always test the magswitch in each application before deployment. Refer to the magswitch information booklet for more information.

  • SWL (Safe Working Load) = Maximum Force5/ Safety Force (≥5)
  • 1Determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches with optimized pole shoes. Many factors contribute to the actual breakaway force and safe working load in each application. Consult a Magswitch Applications Engineer and test the Magswitch in each application before deployment.
  • 2All data applies to unit with flat pole shoes installed.
  • 3Determined with SAE1018 Steel L=200mm W=200mm.
  • 4Values may vary by +/- 5%.
  • 5Maximum forces listed above are not safe lifting forces. Designer must take into account safety factor when specifying tool. Magswitch recommends SWL = 5:1 for most applications.
